Plain Dutch Woven Wire Cloth , 325x2300 Mesh SS316 2 Micron Filter Cloth
Datos del producto:
| Lugar de origen: | China |
| Nombre de la marca: | FUHANG |
| Certificación: | ISO9001 |
| Número de modelo: | malla 325x2300 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 metro cuadrado |
|---|---|
| Precio: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Tiempo de entrega: | 5-8 días del trabajo |
| Condiciones de pago: | L/C, T/T |
| Capacidad de la fuente: | días de /15 de 50000 metros cuadrados |
|
Información detallada |
|||
| Nombre de producto: | paño de 325x2300 Mesh Dutch Weave Micronic Filter | Uso: | Malla de alambre tejida |
|---|---|---|---|
| Estilo de la armadura: | Armadura holandesa/llana/de tela cruzada | Tipo: | Malla de alambre de la armadura |
| Técnica: | Tejido | Material: | Alambre de acero inoxidable 316 |
| Anchura: | El generalmente 1M | Uso: | filtro |
| Longitud: | el 1-30m | Característica: | etc de Ácido-resistencia, anticorrosión, de álcali-resistencia |
| Color: | Plata | Ventaja: | venta directa de la fábrica |
| Muestra: | libre | Embalaje: | el tubo inside+ del papel wodden el bolso de la caja +plastic + |
| Alta luz: | Plain Dutch Woven Wire Cloth,SS316 2 Micron Filter Cloth |
||
Descripción de producto

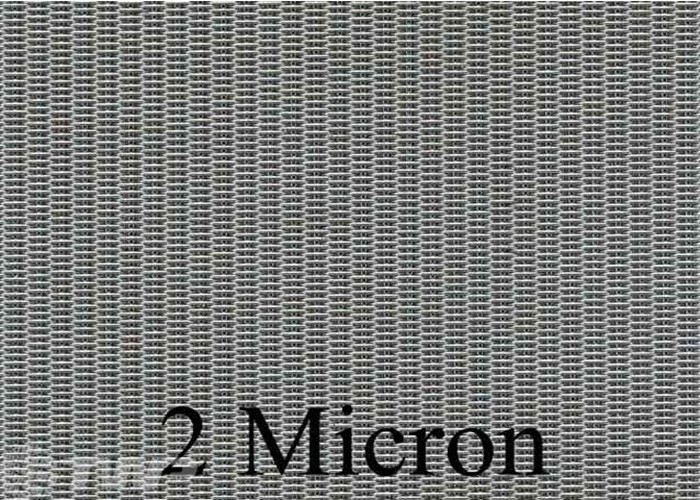

T316 325x2300 Mesh Dutch Weave 2 Micron Filter Cloth
Mesh with a Dutch weave is woven to a precise tolerance for a much denser finished material with small, curved tunnel-shaped openings. Light does not pass through Dutch-woven micronic filter mesh. Thick and sturdy Dutch weaves are typically used for hydraulic fluid filters, gas diffusers, vacuum filters, pressure liquid filters, and breather vents.
Being a leader in the market, we are occupied in providing our customers a qualitative range of Dutch Weave Wire Mesh that is made by the use of coarse mesh. Our offered wire mesh is primarily in vacuum, fluid and pressure filtration of liquids and gases. This wire mesh is known for its greater mechanical stability, precise tolerances, resistant to corrosion, superior strength, fine finish and excellent thickness. Due to their high tensile strength, the offered Dutch Weave Wire Mesh is widely appreciated among our clients. Also, our renowned clients can avail these wire mesh at most affordable prices.
Dutch weave is divided into plain Dutch weave and twill Dutch weave. 325x2300 Mesh uses twill Dutch weave.
| U.S. | Metric | |
| MESH SIZE | 325x2300 per in | 325x2300 per 2.54 cm |
| WIRE DIAMETER | 0.0014x0.0010 in | 0.03556x0.0254 mm |
| OPENING | 0.0001 in | 0.00254 mm |
| OPENING MICRONS | 2 | 2 |
| POROSITY | 36 | 36 |
| OVERALL THICKNESS | 0.0035 in | 0.0889 mm |
| WEIGHT/SQUARE FOOT | 0.1000 lb | 0.0454 kg |
Features
2 micron precision woven stainless steel screen
Used in separation, fuel filters, gas diffusers and vents
Light tight mesh
Flow Data is available
Meets ASTM E2814-18
Stainless Steel 316
